vSphere 7 + Workload Management + HAProxy

To enable Workload Management on vSphere 7 and using HAProxy as the networking stack, ensure the following steps are completed:

Create a private network port group in vSphere, and attach to vmnic1

Setup HAProxy appliance by downloading, and import the OVA from https://github.com/haproxytech/vmware-haproxy

Attach the Management Network and Frontend Network to a routable network
Attaching Workload Network to the port group associate with the private network
Allocate a /28 CIDR block for Frontend/Load Balancer IPs

Component	IP Address/CIDR
Management IP / HA Proxy IP	172.16.0.64
Workload IP	192.168.10.10
Load Balancer Service IP Range	172.16.0.129/26
Supervisior Cluster IP Range	172.16.0.224/29

Create a Tag on the storage/s that will be used for workload management
- Click in vCenter > Storage
- Select the storage and click on Actions > Tags & Custom Attributes > Assign Tag
- Create a tag with the name k8s and Category name as k8s and select all
- Assign the tag
Create a VM Storage Policies by clicking in vCenter > Policies and Profiles > VM Storage Policies
- Click on Create VM Storage Policy
- Name: k8s-storage
- Enable tag based placement rules
- Tag Category: k8s and Tags k8s
- Storage compatibility: should see all the storages
On the cluster, enable DRS and HA. Ensure the vmk0 is enabled for vMotion & vSAN

Download and host the content library on linux box script

#!/bin/bash -x

CONTENT_URL=https://wp-content.vmware.com/v2/latest/
CONTENT_FOLDER=/data/vmware/content

mkdir ${CONTENT_FOLDER}
wget ${CONTENT_URL}/items.json -O ${CONTENT_FOLDER}/items.json
wget ${CONTENT_URL}/lib.json -O ${CONTENT_FOLDER}/lib.json

FOLDERS=$(cat ${CONTENT_FOLDER}/items.json | jq -r '.items[] | .name')

for f in ${FOLDERS}; do
  if [[ ! -d "${CONTENT_FOLDER}/${f}" ]]; then
    mkdir -p ${CONTENT_FOLDER}/${f}
  fi

  pushd ${CONTENT_FOLDER}/${f}
    if [[ ! -f "item.json" ]]; then
      wget ${CONTENT_URL}/$f/item.json -O item.json
    fi
    FILES=$(cat item.json | jq -r '.files[] | .name')
    for file in ${FILES}; do
      if [[ ! -f "${file}" ]]; then
        wget ${CONTENT_URL}/$f/$file -O $file
      fi
    done
  popd
done

Install nginx on ubuntu.lab.int and set the port to listen on 9090, update the /etc/nginx/sites-available/default

server {
  listen 9090 default_server;
  listen [::]:9090 default_server;

  root /data;

  index index.html index.htm index.nginx-debian.html;

  server_name _;

  location / {
    autoindex on;
    try_files $uri $uri/ =404;
  }
}

Setup content Library by clicking on vCenter > Menu > Content Libraries
- Create one with the name k8s and Subscribed content library: http://ubuntu.lab.int:9090/vmware/content/lib.json

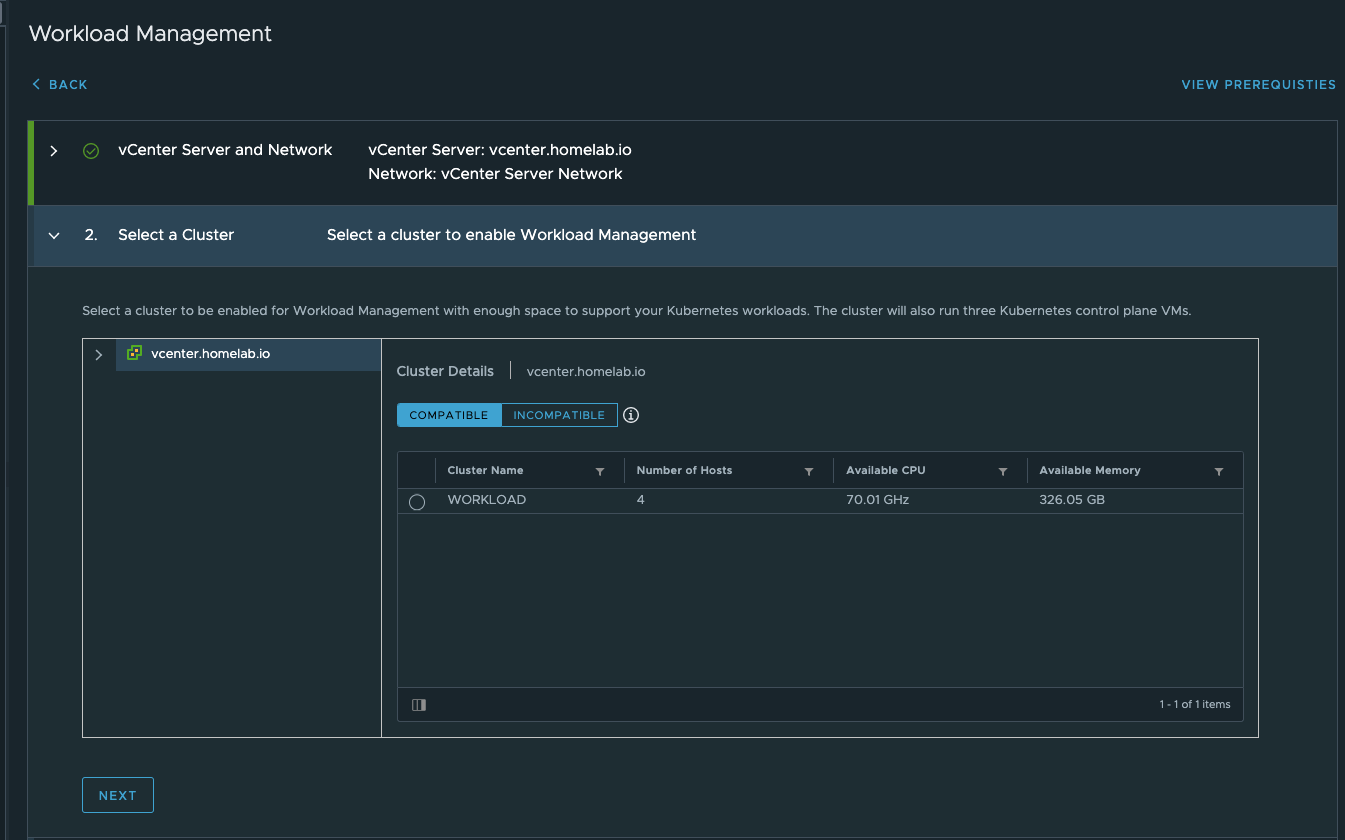

If all the above is done, then click on vCenter > Menu > Workload Management
- Click Enable, and you should see the clusters in the compatible list
  - vCenter Server and Network: vCenter Server Network
  - Cluster: WORKLOAD
  - Size: Tiny

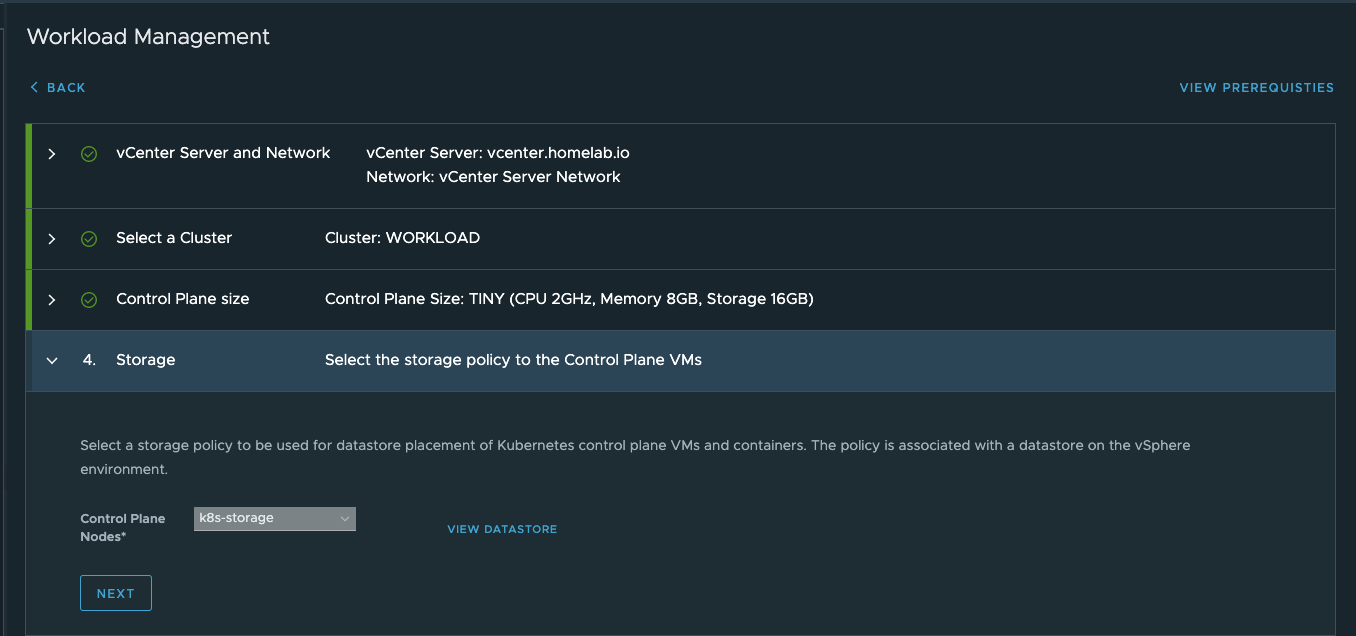

  - Storage:
    - Control Plane Node: k8s-storage
  - Load Balancer:
    - Name: haproxy
    - Type: HA Proxy
    - Data plane API Address: 172.16.0.67:5556
    - User name: admin
    - Password: password
    - IP Address Ranges for Virtual Servers: 172.16.0.129-172.16.0.191
    - Server Certificate: Get the value by running the command > echo | openssl s_client -showcerts -connect 172.16.0.67:5556 2>/dev/null | openssl x509 -inform pem -text

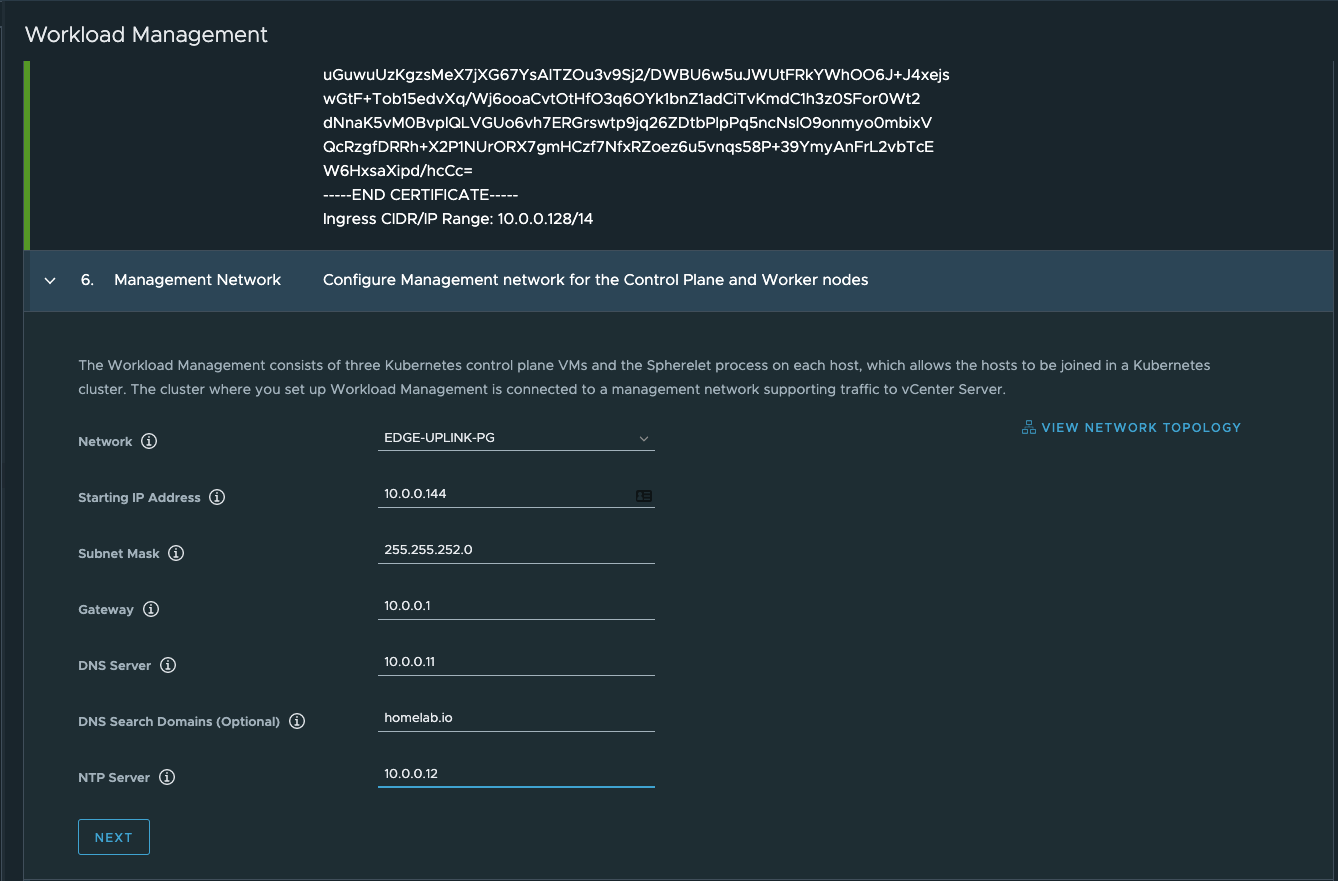

  - Management Network:
    - Network: EDGE-UPLINK-PG
    - Start IP Address: 172.16.0.224
    - Subnet Mask: 255.255.0.0
    - Gateway: 172.16.0.1
    - DNS Server: 172.16.0.30,172.16.0.31
    - DNS Search Domain: lab.int
    - NTP Server: 172.16.0.22

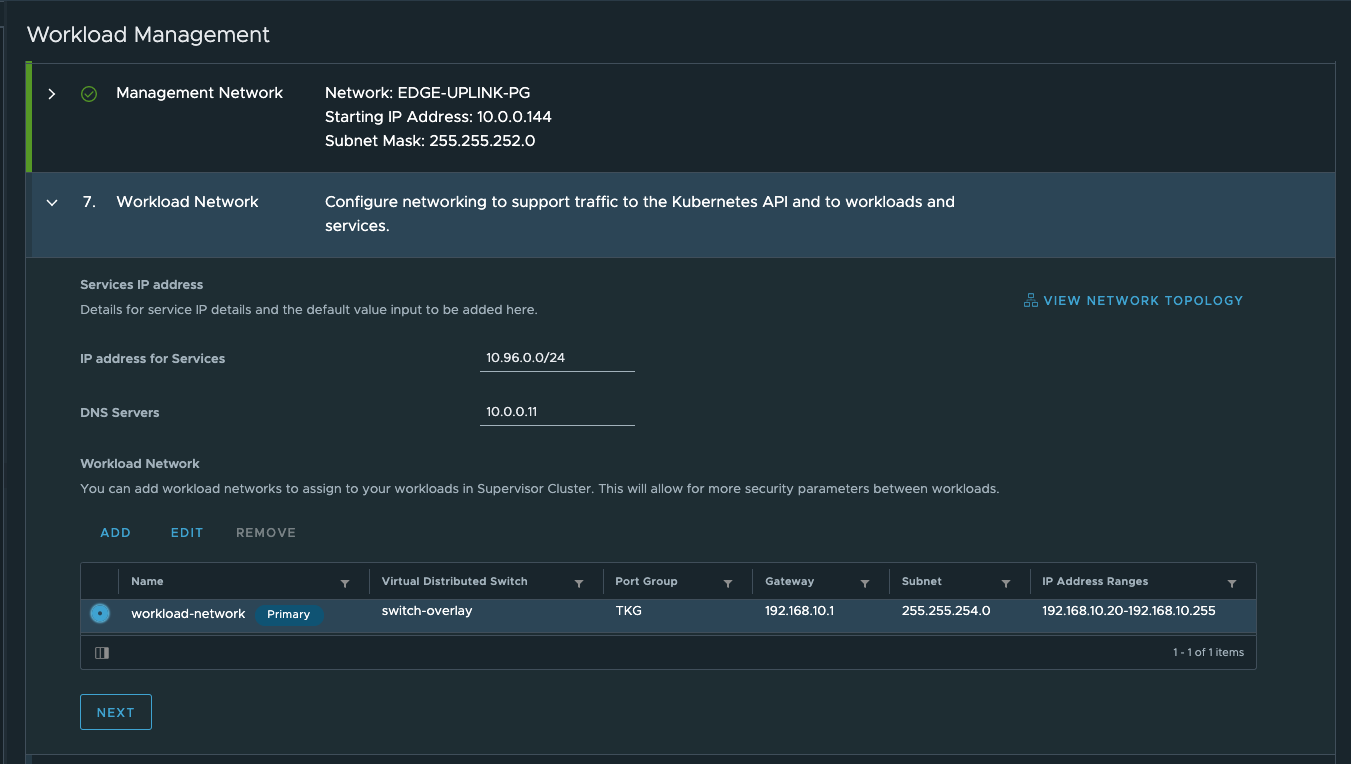

  - Workload Network:
    - IP address for Services: 10.96.0.0/24
    - DNS Servers: 172.16.0.30,172.16.0.31

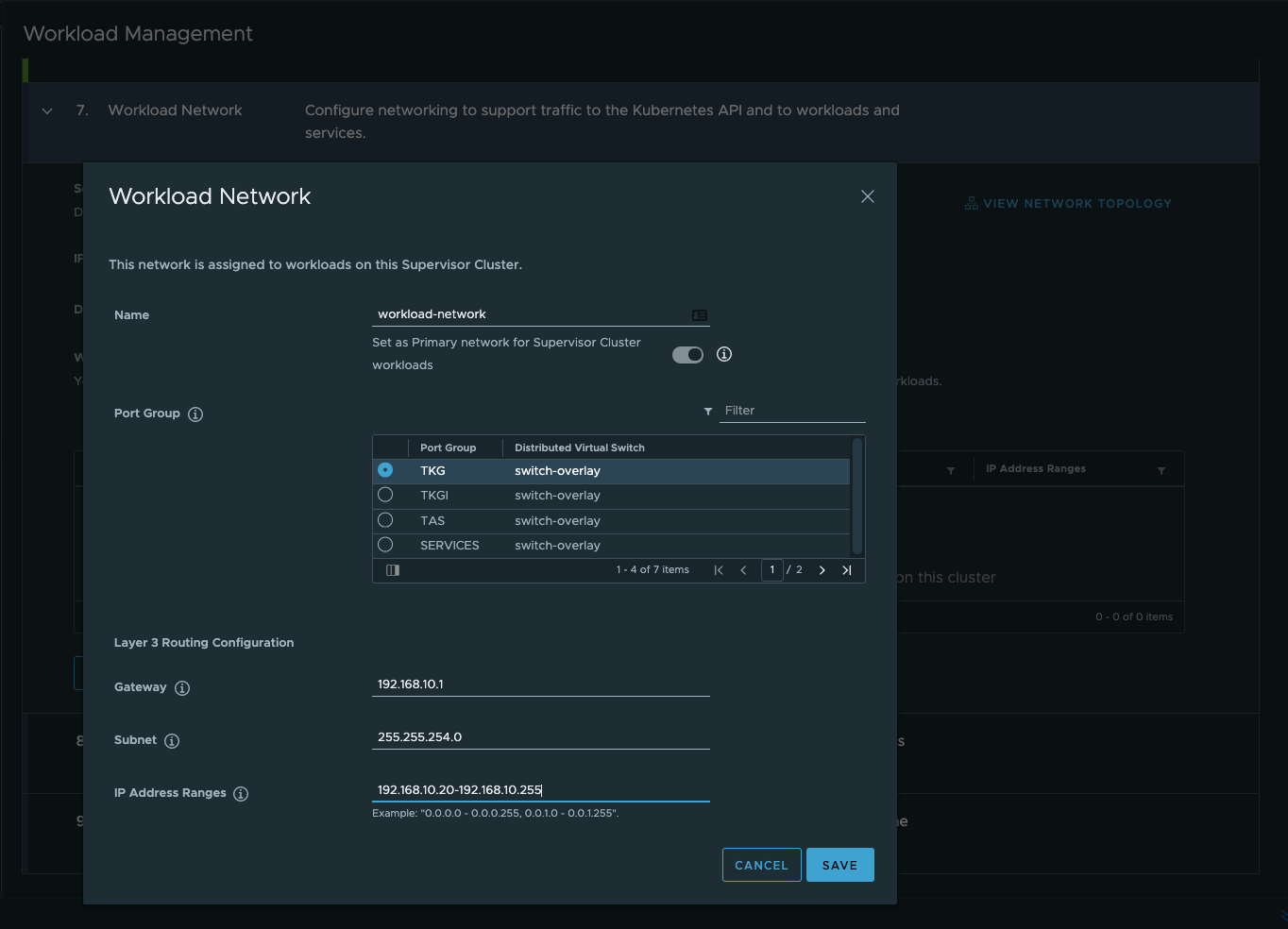

    - Workload Network:
      - Name: workload-network
      - Prot Group: TKG
      - Gateway: 192.168.10.1
      - Subnet: 255.255.254.0
      - IP Address Ranges: 192.168.10.20-192.168.10.255

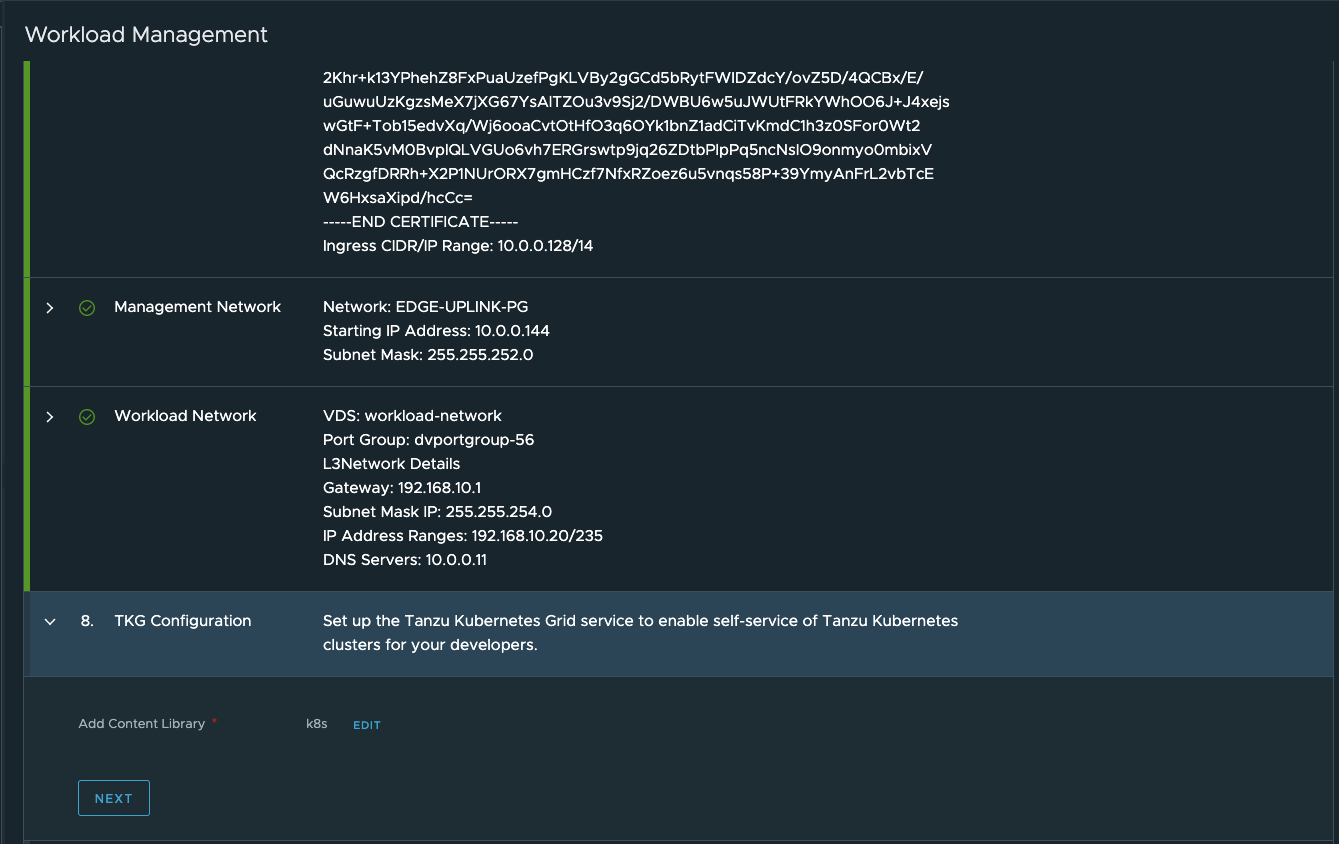

  - TKG Configuration:
    - Content Library: k8s

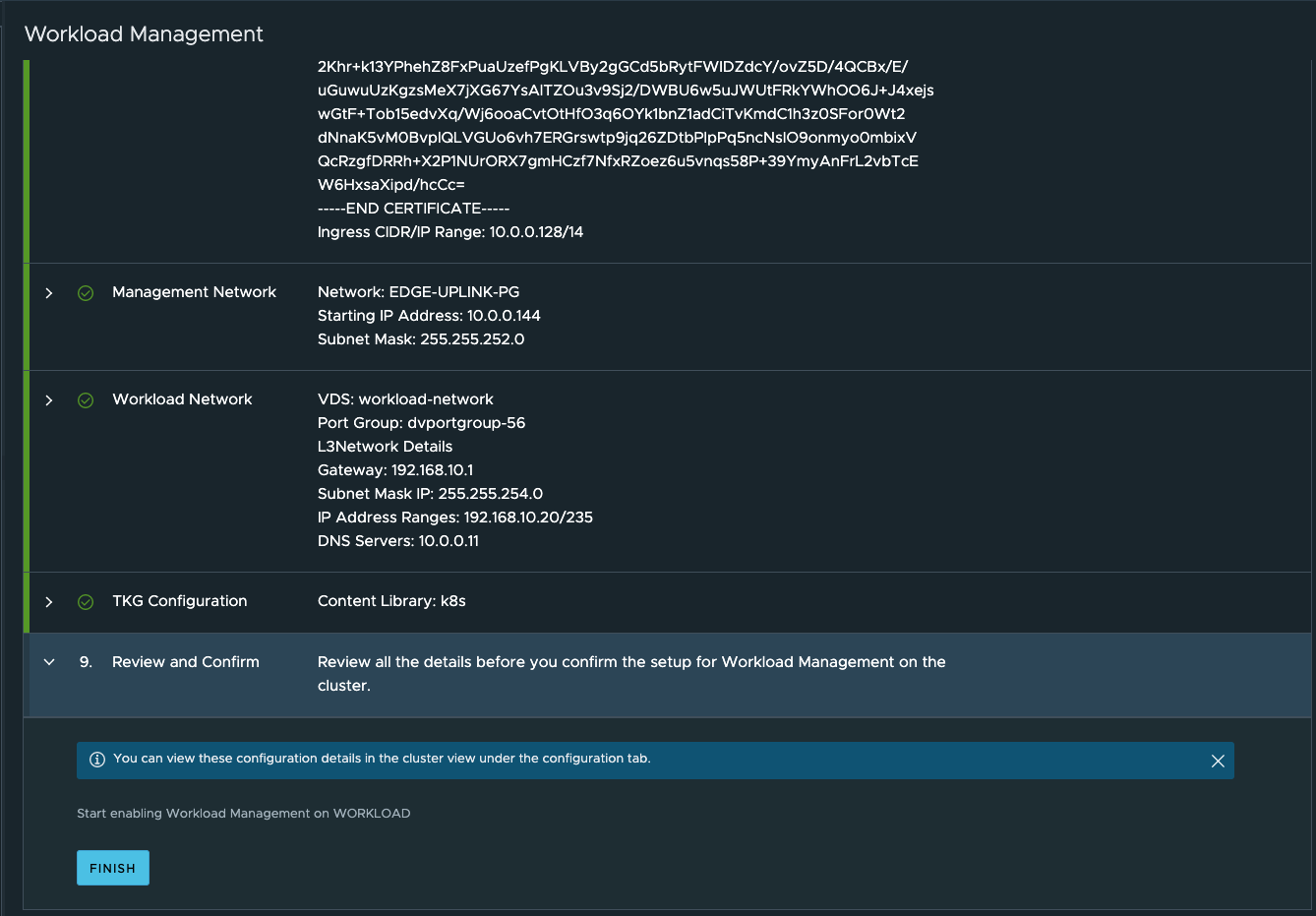

  - Review and apply
To view the logs of the ongoing activities:

ssh root@vcenter.lab.int
shell
tail -f /var/log/vmware/wcp/wcpsvc.logtail -f /var/log/vmware/> wcp/wcpsvc.log

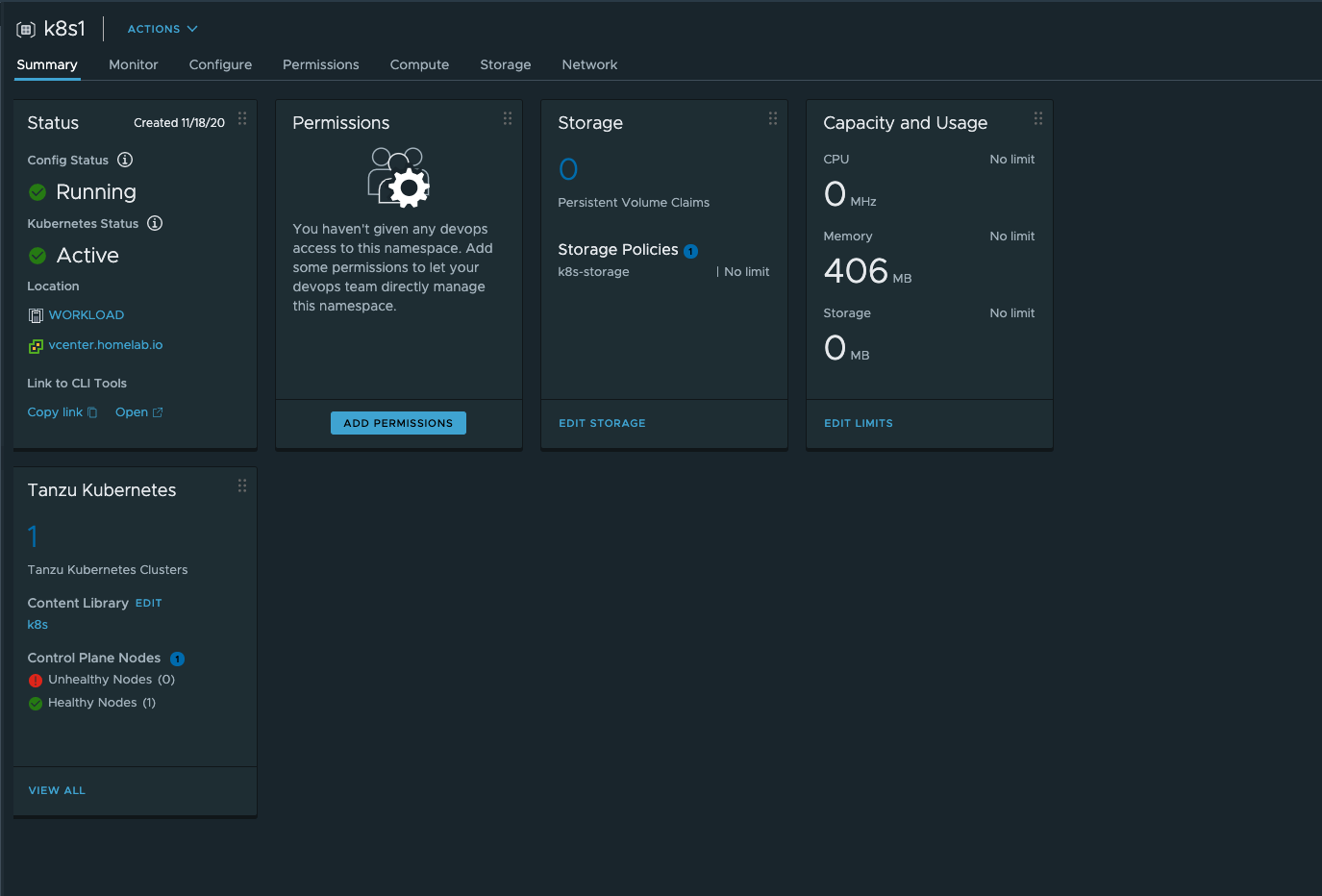

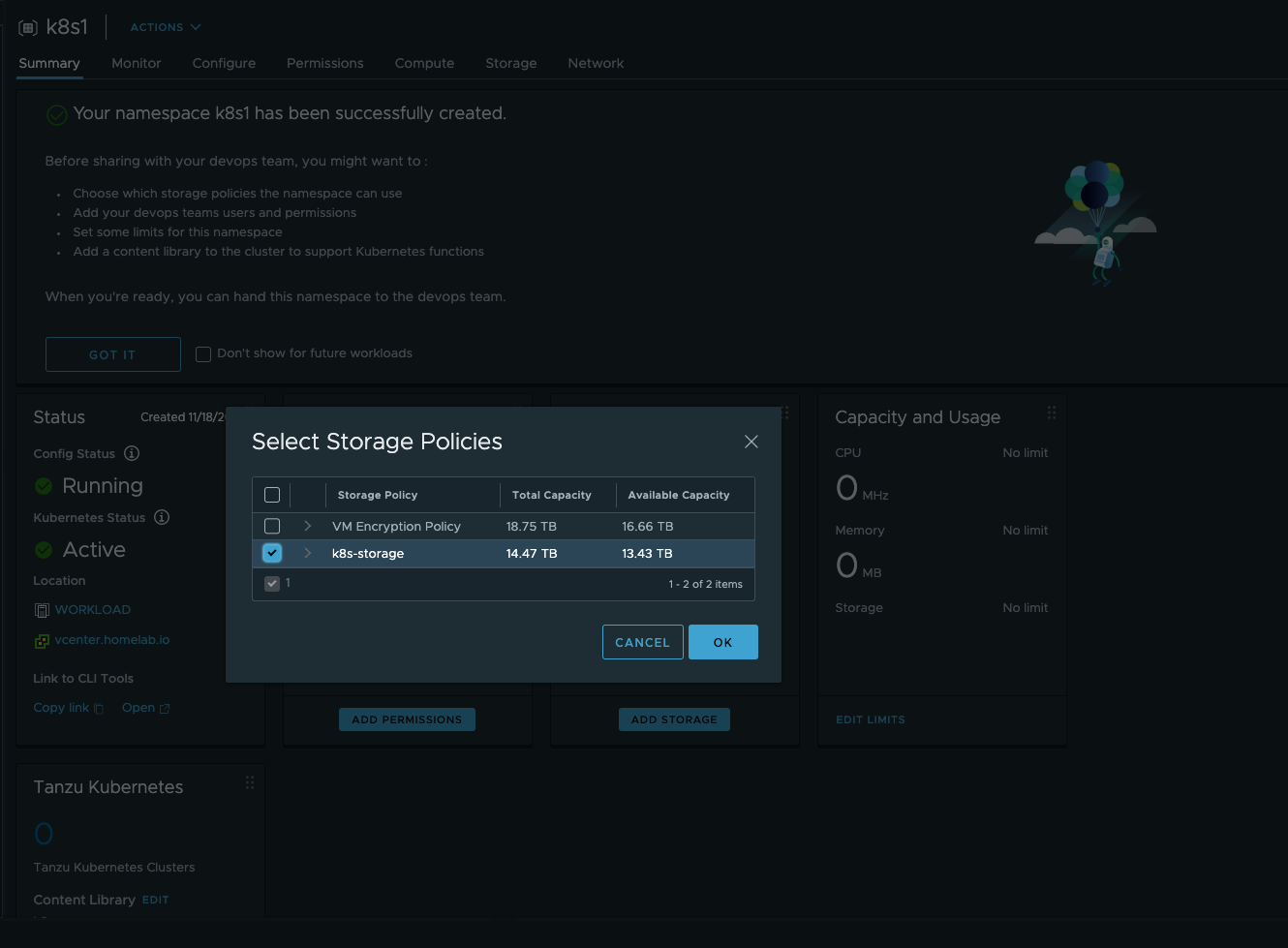

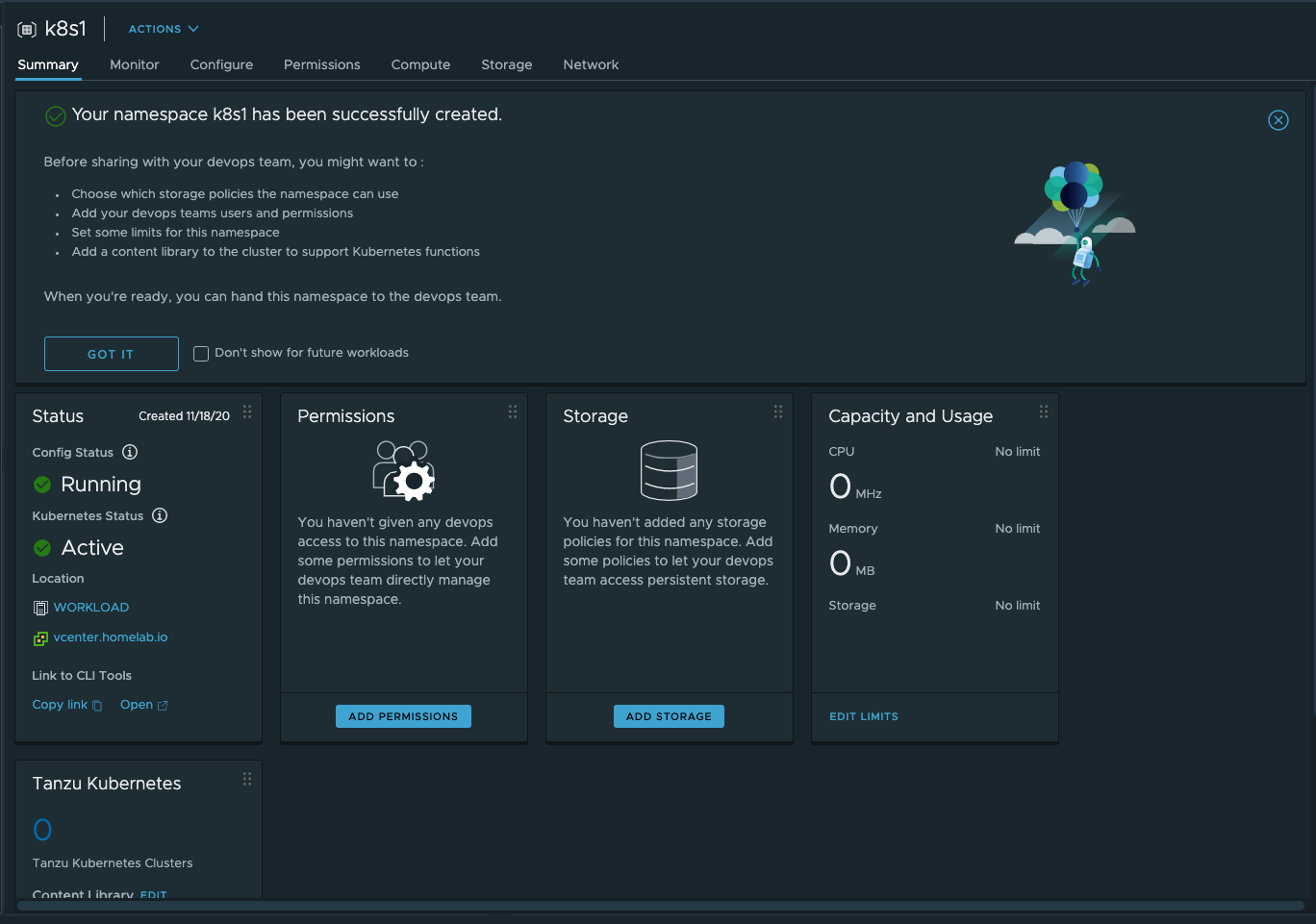

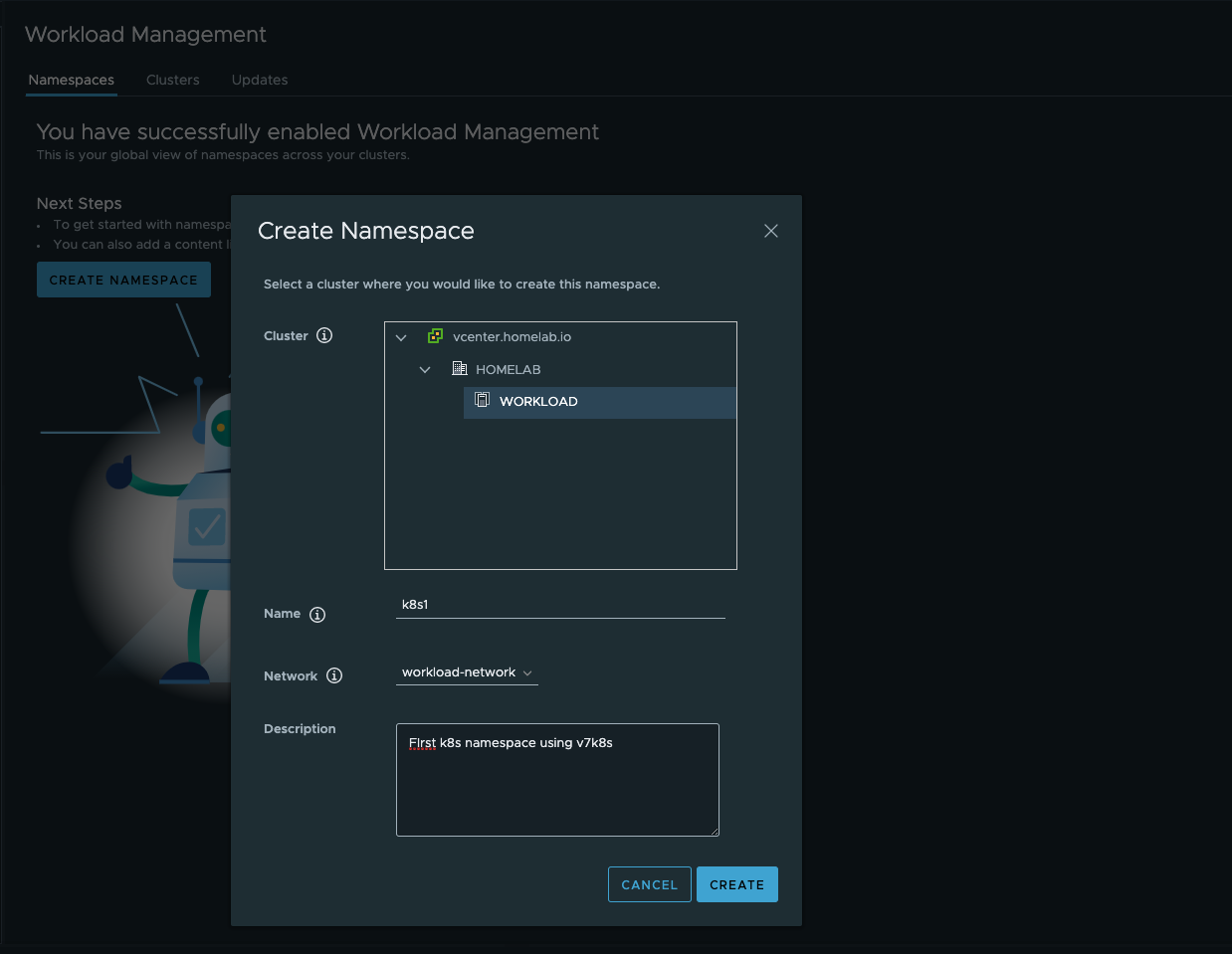

Create a namespace k8s1 using the Workload Management
Download the kubectl vsphere plugin, by connecting to the supervisor cluster. Click on the k8s1 and on summary > status, click on Open link to CLI tools. Download the cli and put it in the path
Next connect to the supervisor cluster k vsphere login --server=https://172.16.0.129/ --insecure-skip-tls-verify --vsphere-username=administrator@lab.int and login as administrator k config use-context k8s1

List all the k8s versions available

k get virtualmachineimages

NAME                                                         VERSION                           OSTYPE
ob-15957779-photon-3-k8s-v1.16.8---vmware.1-tkg.3.60d2ffd    v1.16.8+vmware.1-tkg.3.60d2ffd    vmwarePhoton64Guest
ob-16466772-photon-3-k8s-v1.17.7---vmware.1-tkg.1.154236c    v1.17.7+vmware.1-tkg.1.154236c    vmwarePhoton64Guest
ob-16545581-photon-3-k8s-v1.16.12---vmware.1-tkg.1.da7afe7   v1.16.12+vmware.1-tkg.1.da7afe7   vmwarePhoton64Guest
ob-16551547-photon-3-k8s-v1.17.8---vmware.1-tkg.1.5417466    v1.17.8+vmware.1-tkg.1.5417466    vmwarePhoton64Guest
ob-16897056-photon-3-k8s-v1.16.14---vmware.1-tkg.1.ada4837   v1.16.14+vmware.1-tkg.1.ada4837   vmwarePhoton64Guest
ob-16924026-photon-3-k8s-v1.18.5---vmware.1-tkg.1.c40d30d    v1.18.5+vmware.1-tkg.1.c40d30d    vmwarePhoton64Guest
ob-16924027-photon-3-k8s-v1.17.11---vmware.1-tkg.1.15f1e18   v1.17.11+vmware.1-tkg.1.15f1e18   vmwarePhoton64Guest
ob-17010758-photon-3-k8s-v1.17.11---vmware.1-tkg.2.ad3d374   v1.17.11+vmware.1-tkg.2.ad3d374   vmwarePhoton64Guest

Create a cluster yaml and then run k create -f cluster.yaml

apiVersion: run.tanzu.vmware.com/v1alpha1
kind: TanzuKubernetesCluster
metadata:
  name: k8s1-cluster-1
  namespace: k8s1
spec:
  topology:
    controlPlane:
      count: 3
      class: best-effort-xsmall # https://docs.vmware.com/en/VMware-vSphere/7.0/vmware-vsphere-with-tanzu/GUID-7351EEFF-4EF0-468F-A19B-6CEA40983D3D.html
      storageClass: k8s-storage
    workers:
      count: 3
      class: best-effort-xsmall # https://docs.vmware.com/en/VMware-vSphere/7.0/vmware-vsphere-with-tanzu/GUID-7351EEFF-4EF0-468F-A19B-6CEA40983D3D.html
      storageClass: k8s-storage
  distribution:
    version: v1.12.2
  settings:
    network:
      cni:
          name: antrea
      services:
        cidrBlocks: ["198.51.100.0/12"]
      pods:
        cidrBlocks: ["192.0.2.0/16"]

k apply -f cluster.yaml

tanzukubernetescluster.run.tanzu.vmware.com/k8s1-cluster created

This will take a while, and you can watch the cluster creation by k get TanzuKubernetesCluster -w

After the cluster creation is complete, you should see

k get TanzuKubernetesCluster
NAME   CONTROL PLANE   WORKER   TKR NAME                           AGE     READY   TKR COMPATIBLE   UPDATES AVAILABLE
dev    1               3        v1.21.2---vmware.1-tkg.1.ee25d55   6h44m   True    True

Finally k vsphere login --server=https://172.16.0.144/ --insecure-skip-tls-verify --vsphere-username=administrator@lab.int --tanzu-kubernetes-cluster-namespace=k8s1 --tanzu-kubernetes-cluster-name=k8s1-cluster-1
